S-Type Load Cell 5kg to 2T Force Sensor

Name: S-Type Load Cell 5kg to 2T Force Sensor
Brand: Dazed
SKU: DZD-4844
Price: 111.99 EUR
Availability: InStock
Rating: 5.00 (16 reviews)

Rated 5.00/5 by 16 shoppers

€111.99

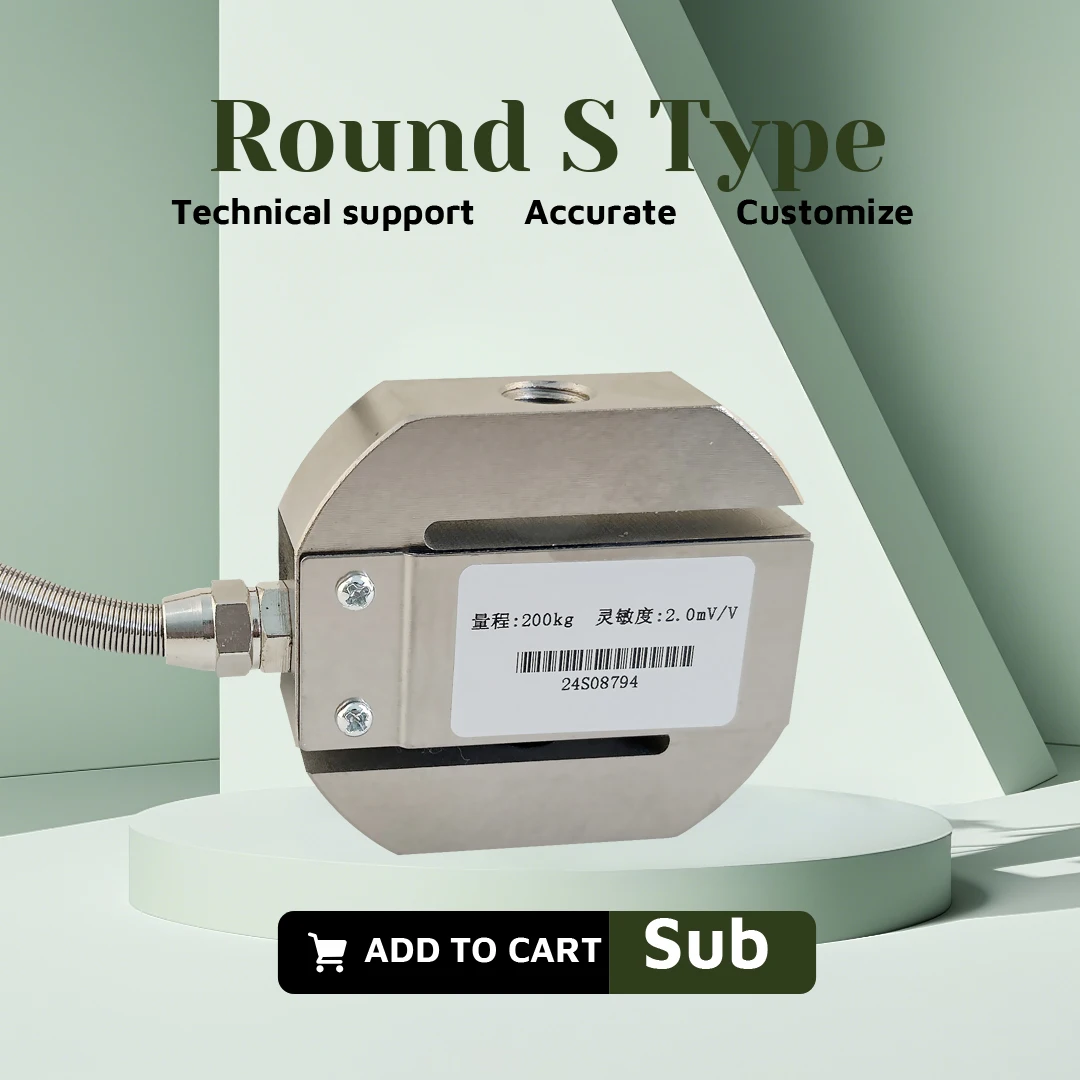

Metal S-type load cell for tension and compression measurement
Rated load options from 5kg to 2000kg (2T)
Sensitivity of 2.0 ±0.05 mV/V with high accuracy
IP65/IP66 protection rating for industrial use
Operating temperature range of -20°C to +70°C

This is a column S-type load cell made from metal, designed for accurate tension and compression force sensing. It offers a range of capacities from 5kg up to 2 tonnes with analogue output. It is typically used in industrial weighing scales, hopper systems and material testing equipment.
