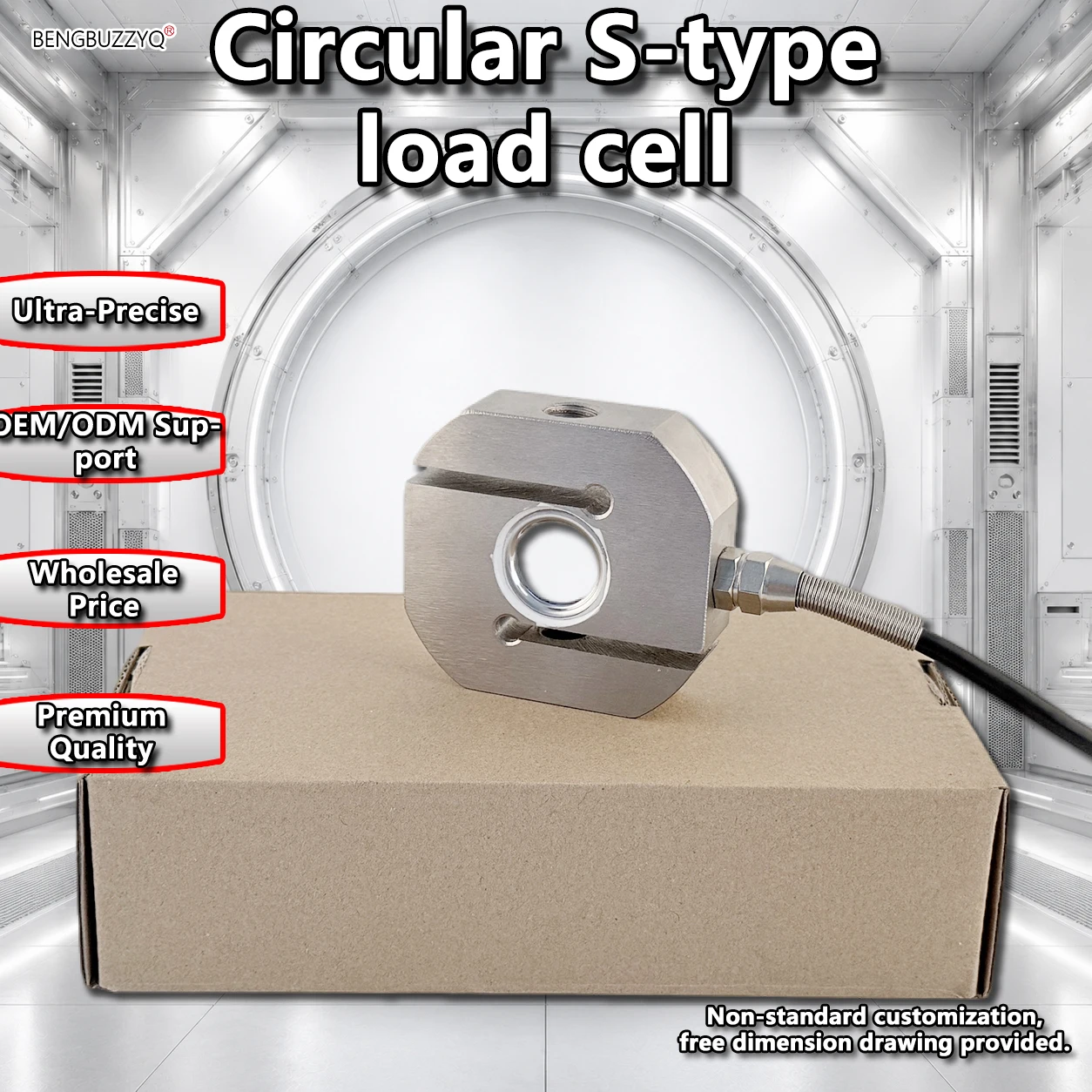

S-Type Alloy Load Cell 5 kg to 500 kg

Name: S-Type Alloy Load Cell 5 kg to 500 kg
Brand: Dazed
SKU: DZD-4867
Price: 112.99 EUR
Availability: InStock
Rating: 5.00 (4 reviews)

Rated 5.00/5 by 4 shoppers

€112.99

Rated load options from 5 kg to 500 kg for tension and compression
Non-linearity of ±0.03% F.S with 1.0-2.0 mV/V sensitivity
Safe overload rating of 120% of full scale
Alloy steel construction with operating temperature -20°C to +70°C
Suitable for crane scales, hopper weighing and force measurement

This S-type load cell is made from alloy steel and is designed for both tension and compression force measurement. Available in capacities from 5 kg to 500 kg, it provides accurate analogue output for industrial weighing systems such as crane scales and material testing equipment.
