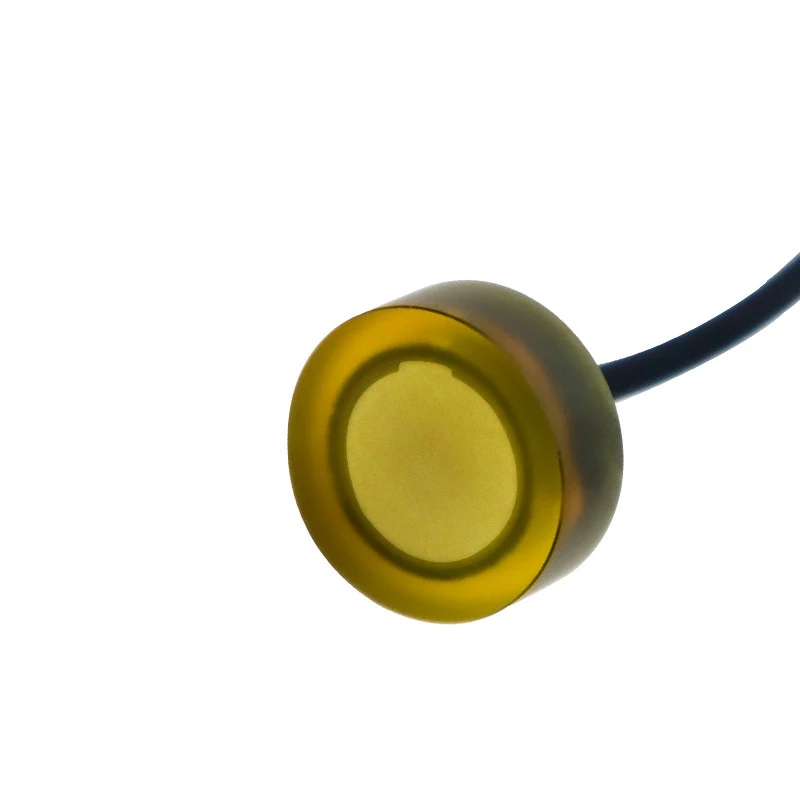

2MHz Underwater Ultrasonic Ranging Transducer

Name: 2MHz Underwater Ultrasonic Ranging Transducer
Brand: Dazed
SKU: DZD-4928
Price: 96.99 EUR
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00/5 by 1 shoppers

€96.99

2MHz hydroacoustic transducer for underwater distance measurement
0.03-2 metre range with 2° half-power beam angle
Composite polymer housing rated IP68 and pressure resistant to 1MPa
500mV echo sensitivity at 0.3m with 24V transmit voltage
Operating temperature -40°C to +80°C for marine and research use

This 2MHz underwater ultrasonic transducer is designed for precise ranging and distance measurement beneath the water surface. Encased in rugged composite material with IP68 protection, it is suitable for marine equipment, underwater robotics and scientific instrumentation. It offers a narrow beam and reliable performance from 0.03 to 2 metres.
